DESCRIPTION

In spite of owning a 100W motor and handling a weight of 135kg for each leaf, this fabulous operator has an absolutely low operator height and unbelievably low depth. It truly is the best choice for graceful architecture and professional architects who wish to create pure beauty.

Standards Airdrive68NG
DIN18650
EN16005
EN60335
EN ISO 13849
EU low voltage directives
EU EMC directives
ISO 9001
TÃœV approved In Process
CE conformity
1.000.000 cycles durability test

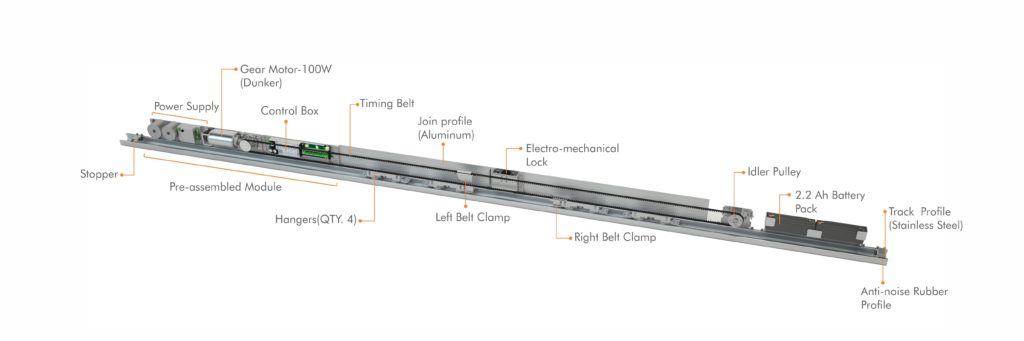

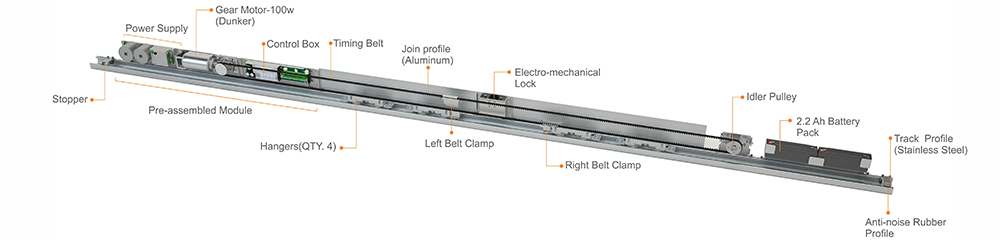

Technical Data
Opening width – single panel 800 – 2000mm
Opening width – double panel 1000 – 3000mm
Max leaf weight, single  1 x 150 kg
Max leaf weight, double 2 x 135kg

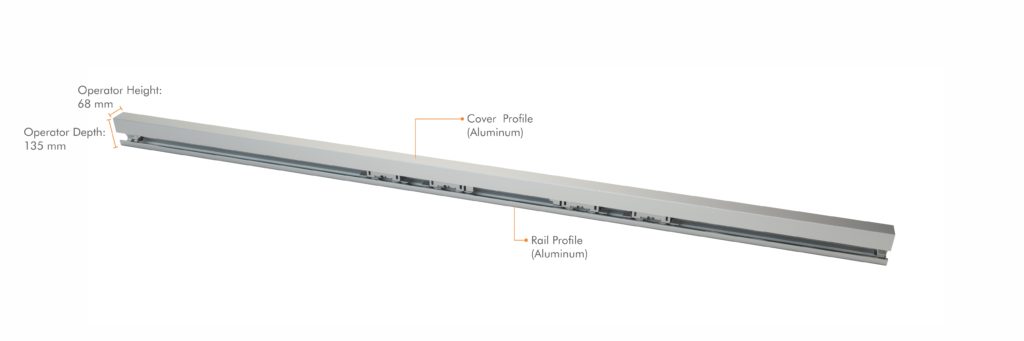

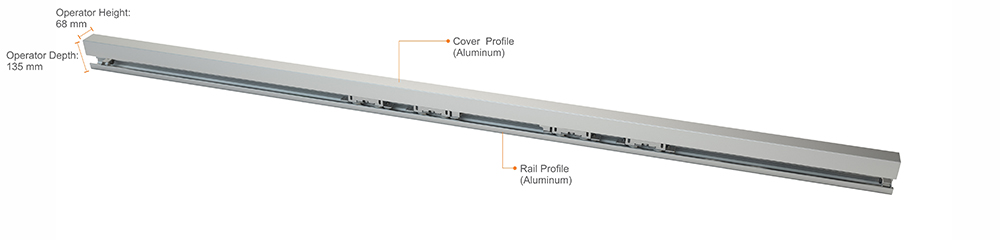

Operator height 68 mm
Operator depth 135 mm
Opening speed Variable up to 0.9 m/s

(Double leaves)

Closing speed Variable up to 0.9 m/s

(Double leaves)

Hold-open time 0 – 30s
Ambient temperature -15 to +50°C
Protection class IP20
100% German-made operator kit
Control unit origin German
Gear motor origin Germany
Track profile Stainless Steel
Anti-noise rubber profile
Gear motor power 100W
Second motor for emergency opening
Dual gear motor and control unit set for master and slave concept
No. of hanger per leaf 2
External protected power supply
Power supply power 230V/130 VA
Back-up battery for emergency opening
Possibility to use safety sensors with testing signal
24V DC output for external accessories
Power lock
Lock monitoring
Possibility of using more software and hardware options by using DEAP device (optional)
Read-out error memory with error codes (with digital programme switch)
Programmable output (optional)
Programmable input (optional)
Possibility of using mechanical key switch (optional)
Possibility of using Digital programme switch (optional)
Possibility of using electro-mechanical lock (optional)
Possibility of using HSML lock
Maximum operation cycles with 2.2 Ah backup battery (optional) 400
Maximum operation cycles with 7.2 Ah backup battery (optional)
Frames
Thermal break TBS
UTS
Saturn
Frameless
THB
