DESCRIPTION

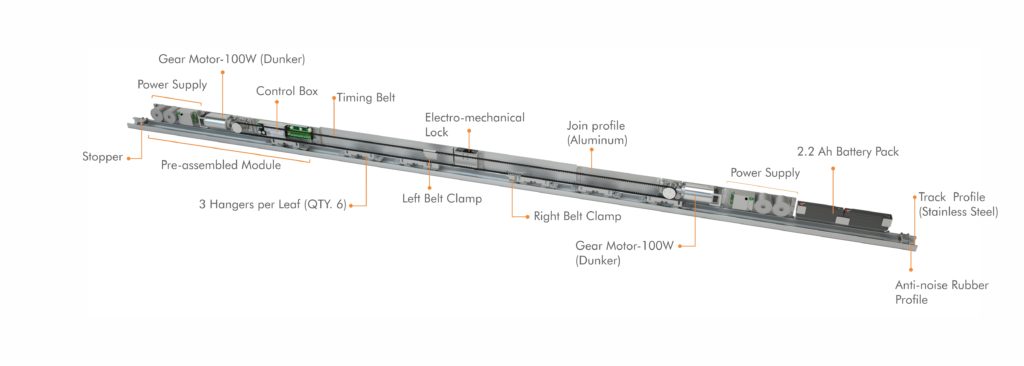

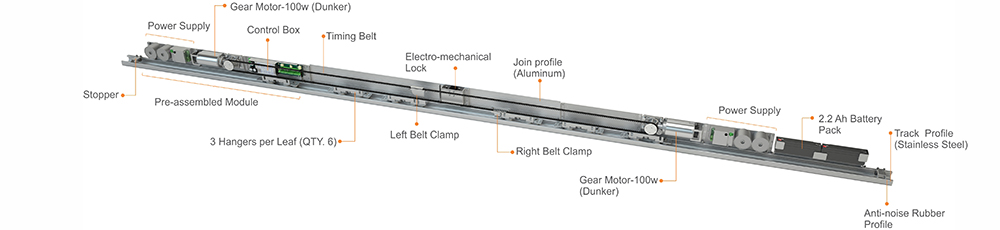

To make sure this sliding system has the strength to handle heavier doors, Airdrive68NG/H employs two 100 W motors and 3 hangers per leaf. Like its other state-of-the-art parts, the motors are fully made in Germany, are absolutely indestructible and there to ensure reliable performance for a lifetime.
| Standards | Airdrive68NG/H |
| DIN18650 | |
| EN16005 | |
| EN60335 | |
| EN ISO 13849 | |
| EU low voltage directives | |
| EU EMC directives | |
| ISO 9001 | |
| TÜV approved | — |
| CE conformity | |
| 1.000.000 cycles durability test | |
| Technical Data | |
| Opening width – single panel | 800 – 2000mm |
| Opening width – double panel | 1000 – 3000mm |
| Max leaf weight, single | 1 x 170kg |
| Max leaf weight, double | 2 x 150kg |

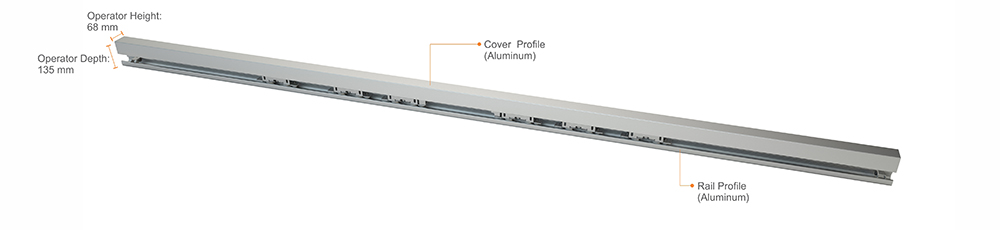

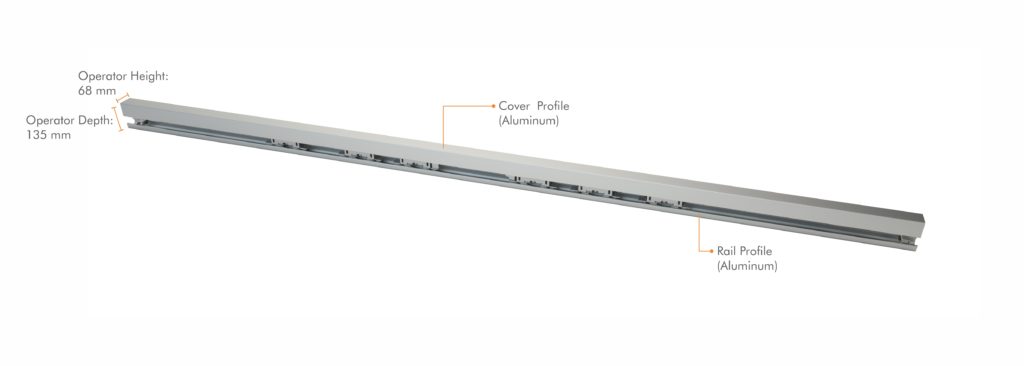

| Operator height | 68 mm |
| Operator depth | 135 mm |
| Opening speed | Variable up to 0.9 m/s
(Double leaves) |
| Closing speed | Variable up to 0.9 m/s
(Double leaves) |
| Hold-open time | 0 – 30s |
| Ambient temperature | -15 to +50°C |
| Protection class | IP20 |
| 100% German-made operator kit | |
| Control unit origin | German |
| Gear motor origin | Germany |
| Track profile | Stainless Steel |
| Anti-noise rubber profile | |
| Gear motor power | 100W |
| Second motor for emergency opening | — |
| Dual gear motor and control unit set for master and slave concept | — |
| No. of hanger per leaf | 3 |
| External protected power supply | |
| Power supply power | 230V/260 VA |
| Back-up battery for emergency opening | — |
| Possibility to use safety sensors with testing signal | |
| 24V DC output for external accessories | |
| Power lock | |
| Lock monitoring | |
| Possibility of using more software and hardware options by using DEAP device (optional) | |
| Read-out error memory with error codes (with digital programme switch) | |
| Programmable output (optional) | |
| Programmable input (optional) | |
| Possibility of using mechanical key switch (optional) | |
| Possibility of using Digital programme switch (optional) | |
| Possibility of using electro-mechanical lock (optional) | |
| Possibility of using HSML lock | — |
| Maximum operation cycles with 2.2 Ah backup battery (optional) | 400 |
| Maximum operation cycles with 7.2 Ah backup battery (optional) | — |
| Frames | |
| Thermal break TBS | |
| UTS | |
| Saturn | |
| Frameless | |
| THB | — |
