DESCRIPTION

Our PrimeDrive/H has proven itself to be a dependable and powerful sliding entry solution. A wide variety of interior or exterior applications can benefit from this beast of a system. Whether you are dealing with demanding entrances with high traffic, doors with multiple-glazing glass or tall wide heavy doors, PrimeDrive/H is here to meet your needs.

View in larger size
Standards PrimeDrive/H
DIN18650
EN16005
EN60335
EN ISO 13849
EU low voltage directives
EU EMC directives
TÜV approved
CE conformity
1.000.000 cycles durability test
Technical Data
Opening width – single panel 800 – 2000mm
Opening width – double panel 1000 – 3000mm
Max leaf weight, single  1 x 400kg
Max leaf weight, double 2 x 250kg

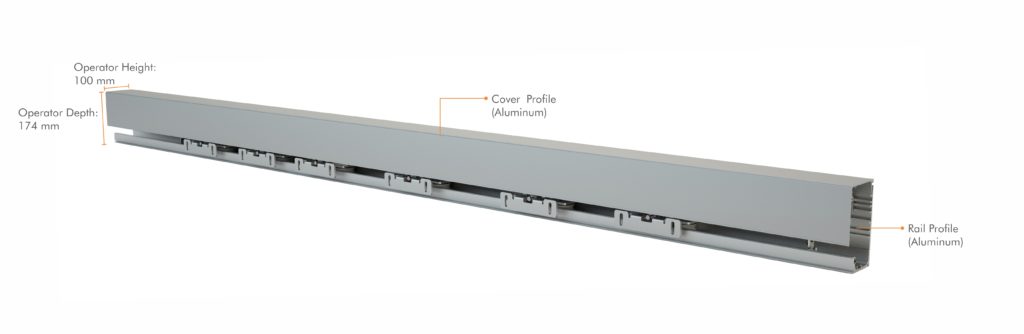

Operator height 100mm
Operator depth 174mm
Opening speed Variable up to 1.7 m/s

(two leaves)

Closing speed Variable up to 1.7 m/s

(two leaves)

Hold-open time 0 – 30s
Ambient temperature -15 to +50°C
Protection class IP20

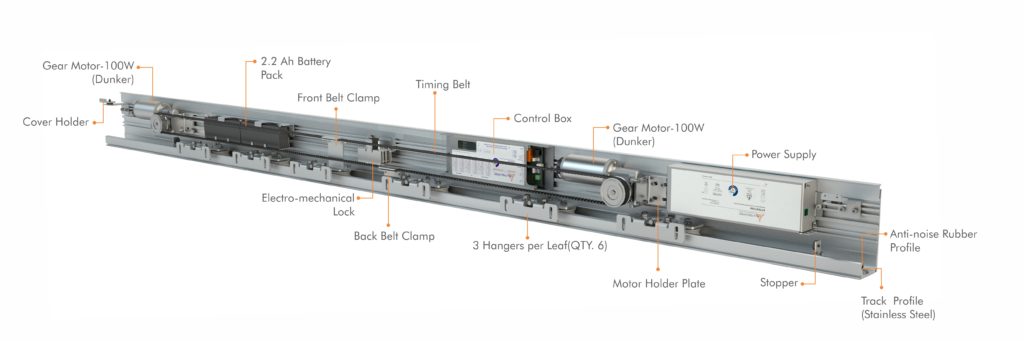

100% German-made operator kit
Control unit origin German
Gear motor origin German by Dunkermotoren
Track profile Stainless Steel
Anti-noise rubber profile
Gear motor power  200W (2 x 100 W)
Second motor for emergency opening
Dual gear motor and control unit set for master and slave concept
No. of hanger per leaf 3
External protected power supply
Power supply power 230V/28V,240VA
Back-up battery for emergency opening
Possibility to use safety sensors with testing signal
24V DC output for external accessories
Power lock
Lock monitoring
Possibility of using more software and hardware options by using DEAP device (optional)
Read-out error memory with error codes (with digital programme switch)
Programmable output (optional)
Programmable input (optional)
Possibility of using mechanical key switch (optional)
Possibility of using Digital programme switch (optional)
Possibility of using electro-mechanical lock (optional)
Maximum operation cycles with 2.2 Ah backup battery (optional) 400
Maximum operation cycles with 7.2 Ah backup battery (optional)
Frames
Thermal break THB
Thermal break TBS
UTS
Saturn
Frameless
