DESCRIPTION

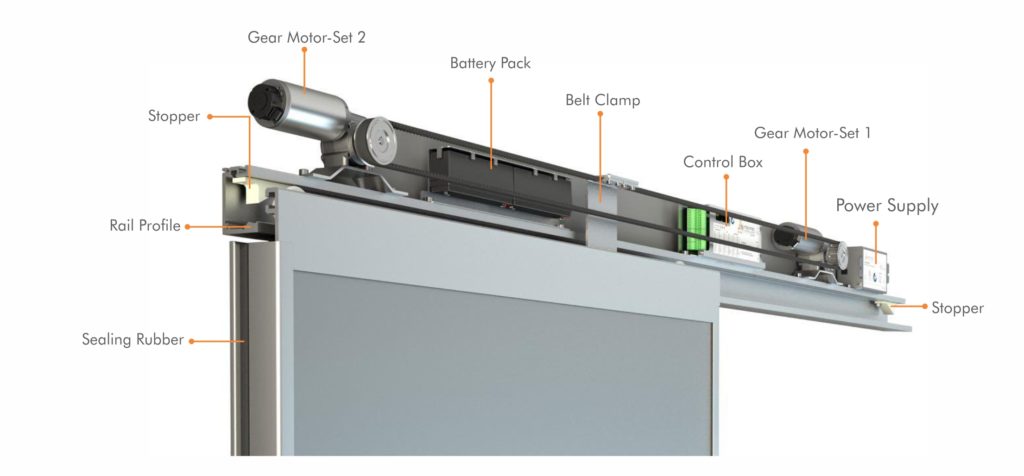

The hermetically sealing sliding door has been specifically designed for use in areas where hygiene and the control of air leakage is critical. The system operator is designed for normal service with automatic pedestrian sliding doors and exclusively for a proper sealing in dry rooms. The door has a unique patented track system which enables it to seal perfectly when closed helping to reduce air handling costs, cross contamination and wound infections.

View in larger size
Standards
Compliant with german
standard DIN 18650
Compliant with EU standard
EN 16005
Compliant with EU standard
EN 60335
Compliant with EU standard
EN ISO 13849-1:2008
Compliant with EU low-voltage
directives
Compliant with EU EMC
directives
Manufactured according to
ISO 9001:2000
CE conformity
tested for 1.000.000 cycles
Technical Data SLH240
Opening width – single panel 800 – 2000 mmtd>
Max leaf weight, single 150 kg
Max Opening height 2500 mm

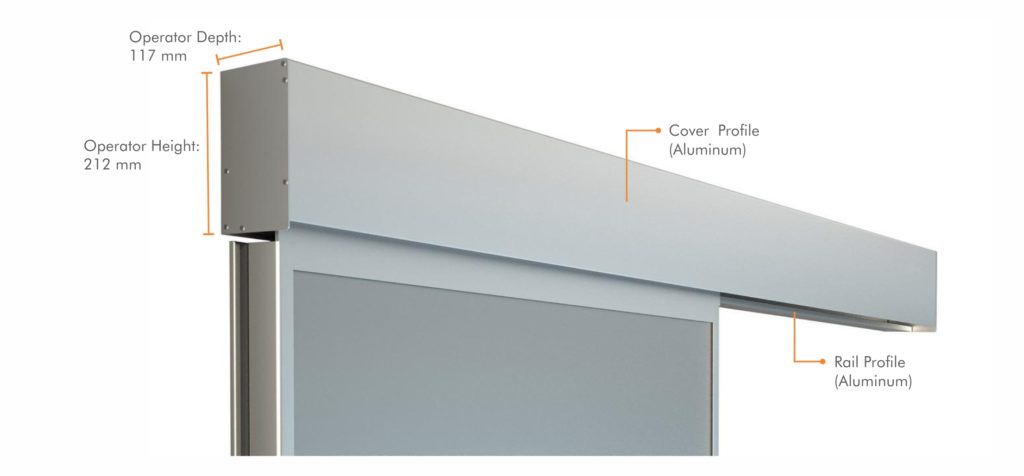

Operator height 212 mm
Operator depth 117 mm
Opening speed 100 – 550 mm/s
Closing speed 100 – 500 mm/s
Hold-open time 0 – 30 s
Ambient temperature -15 to +50°C
Protection class 100 W
Max power consumption 250 W
Max operation cycles with 2.2 Ah
backup battery (Optional)
≈400
Max operation cycles with 7.2 Ah
backup battery (Optional)
≈1000
Possibility to use safety
sensors with testing signal
Possibility to adjust force limitation
according to DIN18650 & EN 16005
Hangers Hard plastic roller
Front cover Extruded aluminum profile
Floor guides Reinforced plastic guides
Fail -safe security Two fail -proof devices on the door panel prevent the door from jumping
during the course.
Handle The handle of the outer and inner are made from stainless steel lever
(optional)
HPL Panel Panels coated circumferentia lly in corners by Aluminum profiles for any
wall thickness
Aluminum surround frame Aluminum frame which installs all over the panel
Aluminum sealing frame Aluminum fra me, m at e ria l A l 6063, to s ea l on th e operating side of t he door
