DESCRIPTION

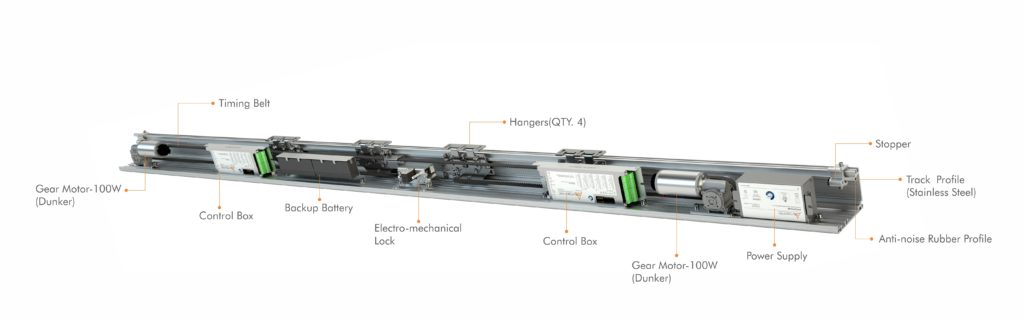

Deutschtec SLH240ES is your ultimate solution for having highest levels of safety in escape routes. This system drives doors by one Gear Motor and Controller (Slave) for opening cycles and the other Gear Motor and Controller (Master) for closing cycles. Such function ensures more than doubled life time and silent operation. In emergency cases both sets are able to open the door.

Standards SLH240ES
DIN18650 YES
EN16005 YES
EN60335 YES
EN ISO 13849 YES
EU low voltage directves YES
EU EMC directives YES
ISO 9001 YES
TÜV approved YES
CE conformity YES
1.000.000 cycles durability test YES
Technical Data
Opening width – single panel 800 – 2000mm
Opening width – double panel 1000 – 3000mm
Max leaf weight, single 200kg
Max leaf weight, double 2 x 150kg

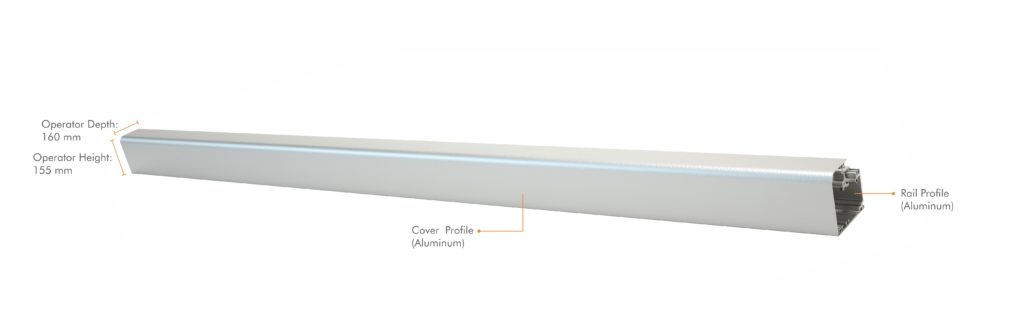

Operator height 155mm
Operator depth 160mm
Opening speed 100 – 550mm/s
Closing speed 100 – 500mm/s
Hold-open time 0 – 30s
Ambient temperature -15 to +50°C
Protection class IP20
100% German-made operator kit YES
Control unit origin Leesys GmbH, a part of Siemens Enterprise Communication
Gear motor origin German by Dunkermotoren
Track profile Stainless Steel
Anti-noise rubber profile YES
Gear motor power 100W
Second motor for emergency opening YES
using dual motor gear and control unit set for safe emergency opening and double life time operation YES
No. of hanger per leaf 2
external protected power supply YES
Power supply power 120VA
back-up battery for emergency opening
possibility to use safety sensors with testing signal YES
24V DC output for external accessories YES
power lock YES
lock monitoring YES
possibility of using more software and hardware options by using DEAP device (optional) YES
read-out error memory with error codes (with digital programme switch) YES
programmable output (optional) YES
programmable input (optional) YES
Possibility of using mechanical key switch YES
Possibility of using Digital programme switch YES
Possibility of using electro-mechanical lock YES
Possibility of using HSML lock YES
Possibility of using Battery Only for emergency opening
maximum operation cycles with 2.2 Ah backup battery
maximum operation cycles with 7.2 Ah backup battery
Frames
Thermal break THB YES
Thermal break TBS YES
UTS YES
Saturn
Frameless
