DESCRIPTION

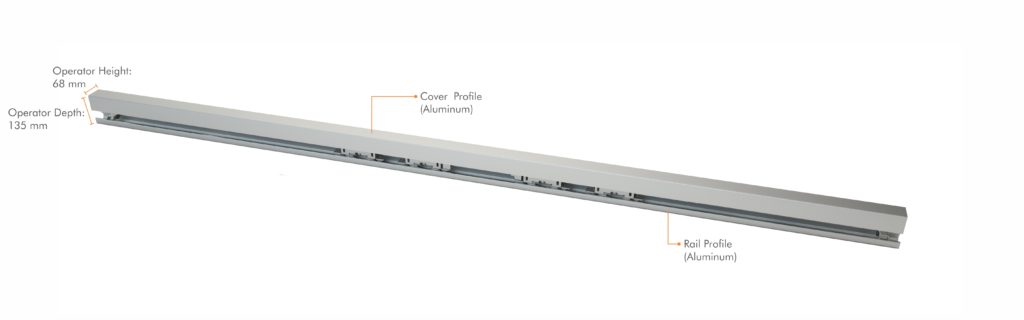

68mm*135mm – the tiniest operator available in the world market. In spite of owning a 100W motor and handling a weight of 120kg for each leaf, this fabulous operator has an absolutely low operator height and unbelievably low depth.

View in larger size
Standards Airdrive68PR
DIN18650
EN16005
EN60335
EN ISO 13849
EU low voltage directives
EU EMC directives
ISO 9001
TÜV approved
CE conformity
1.000.000 cycles durability test
Technical Data
Opening width – single panel 800 – 2000mm
Opening width – double panel 1000 – 3000mm
Max leaf weight, single,SS track 1 x 150 kg
Max leaf weight, double,SS track 2 x 135 kg
Max leaf weight, single,AL track 1 x 140 kg
Max leaf weight, double,AL track  2 x 120 kg
Operator height 68 mm
Operator depth 135 mm
Opening speed Variable up to 0.9 m/s

(Double leaves)

Closing speed Variable up to 0.9 m/s

(Double leaves)

Hold-open time 0 – 30s
Ambient temperature -15 to +50°C
Protection class IP20

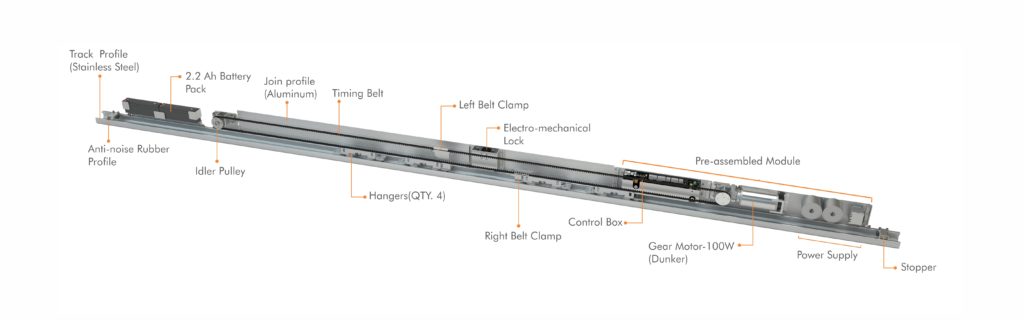

100% German-made operator kit
Control unit origin German
Gear motor origin German by Dunkermotoren
Track profile Stainless Steel/Aluminium
Anti-noise rubber profile
Gear motor power 100W
Second motor for emergency opening
Dual gear motor and control unit set for master and slave concept
No. of hanger per leaf 2
Power supply power 230V/24V,130 VA
Back-up battery for emergency opening
Possibility to use safety sensors with testing signal
24V DC output for external accessories
Power lock
Lock monitoring
Possibility of using more software and hardware options by using DEAP device (optional)
Read-out error memory with error codes (with digital programme switch)
Programmable output (optional)
Programmable input (optional)
Possibility of using mechanical key switch(optional)
Possibility of using Digital programme switch (optional)
Possibility of using electro-mechanical lock (optional)
Possibility of using HSML lock
Possibility of using Battery
Maximum operation cycles with 2.2 Ah backup battery (optional) 400
Maximum operation cycles with 7.2 Ah backup battery (optional)
