DESCRIPTION

Airdrive68NG/Cristal is truly the best choice for graceful architecture and professional architects who wish to create pure beauty. While boasting all regular and special features of Airdrive68NG sliding system, this product beautifies any architecture due to it being full-glass, which means that by showering the building with natural light, it gifts you with a breath of freshness and life.

View in larger size
Standards Airdrive68NG/Cristal
DIN18650
EN16005
EN60335
EN ISO 13849
EU low voltage directives
EU EMC directives
ISO 9001
TÜV approved In Process
CE conformity
1.000.000 cycles durability test
Technical Data
Opening width – single panel 800 – 2000mm
Opening width – double panel 1000 – 3000mm
Max leaf weight, single 1 x 150kg
Max leaf weight, double 2 x 135kg

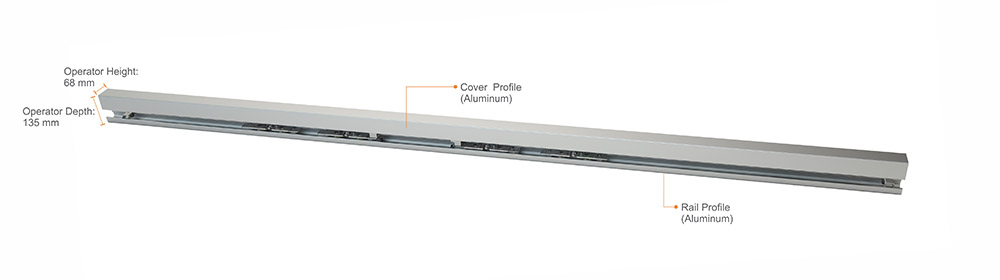

Operator height 68 mm
Operator depth 135 mm
Opening speed

Variable up to 0.9 m/s

(Double leaves)

Closing speed

Variable up to 0.9 m/s

(Double leaves)

Hold-open time 0 – 30 s
Ambient temperature -15 to +50°C
Protection class IP20

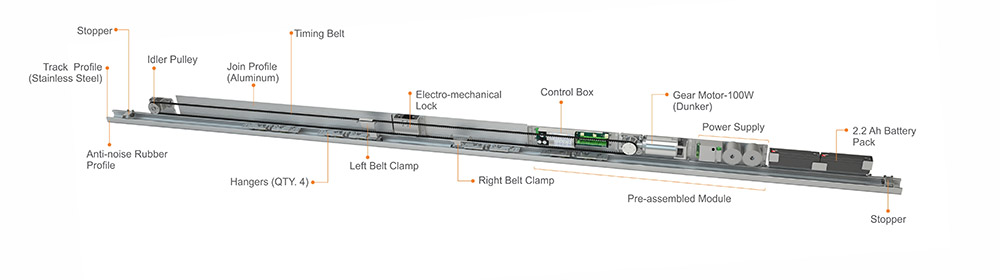

100% German-made operator kit
Control unit origin German
Gear motor origin German by Dunkermotoren
Track profile Stainless Steel
Anti-noise rubber profile
Gear motor power 100W
Second motor for emergency opening
Dual gear motor and control unit set for master and slave concept
No. of hanger per leaf 2
External protected power supply
Power supply power 230V/24V,130VA
Back-up battery for emergency opening
Possibility to use safety sensors with testing signal
24V DC output for external accessories
Power lock
Lock monitoring
Possibility of using more software and hardware options by using DEAP device (optional)
Read-out error memory with error codes (with digital programme switch)
Programmable output (optional)
Programmable input (optional)
Possibility of using mechanical key switch (optional)
Possibility of using Digital programme switch (optional)
Possibility of using electro-mechanical lock (optional)
Possibility of using HSML lock
Maximum operation cycles with 2.2 Ah backup battery (optional) 400
Maximum operation cycles with 7.2 Ah backup battery (optional)
Frames
Thermal break Air-TBS
Thermal break TBS
UTS
Saturn
Frameless
THB



* Mentioned maximum weight express only operator capability regardless of glass strength.Cutting ,machining and mechanical properties of glass should be taken into account in determination of maximum weight limitation
