DESCRIPTION

Deutschtec RV320 and RV420 are chic and eye-pleasing solutions which also offer the highest levels of energy-saving by reducing energy exchange between the inside and outside of buildings. Deutschtec Revolvings, which are presented in three and four-winged models, will bring elegance to the entry area of any building and bestow magnificence upon your facade. This marvelous combination of glass and metal together with the advanced technology we have made use of, creates a breathtaking first impression. Having met all safety requirements and standards, RV320 and RV420 guarantee your maximum security indefinitely.

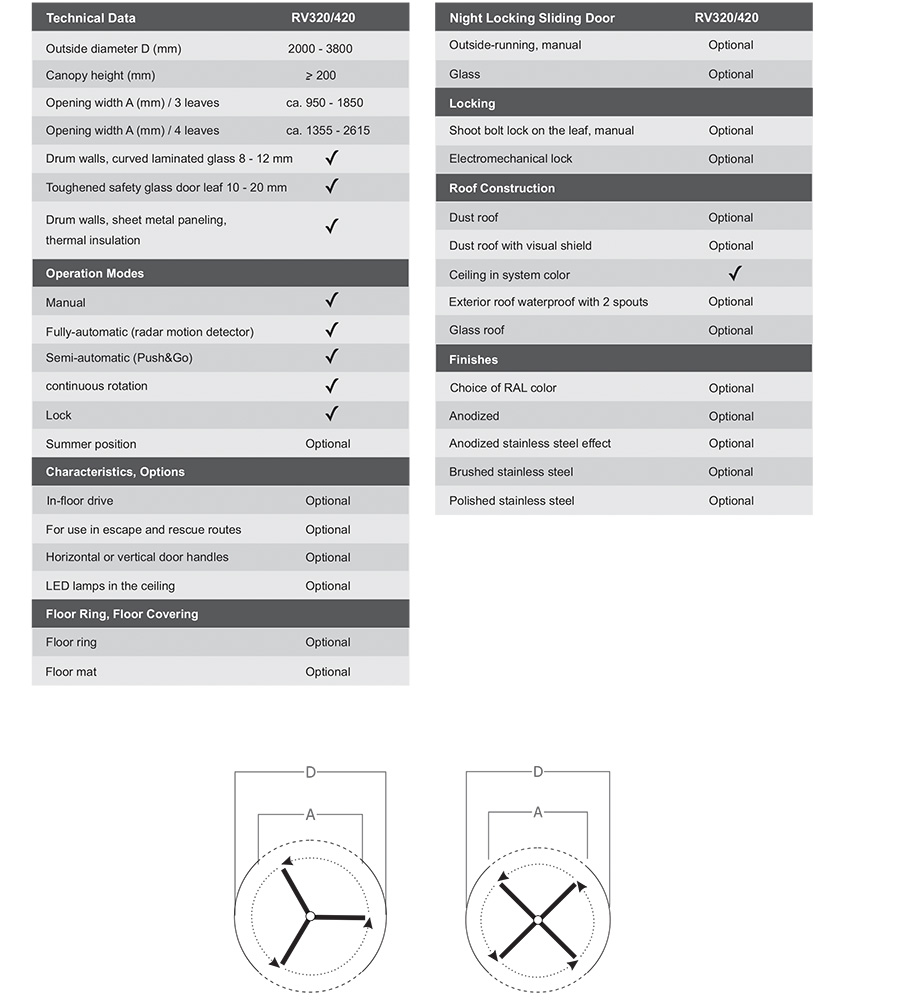

Standard RV320 / 3 leaves RV420/ 4 leaves
DIN 18650 Yes Yes
EN 16005 Yes Yes
EN 60335 Yes Yes
EN ISO 13849-1:2008 Yes Yes
AutSchR Yes Yes
CE conformity Yes Yes

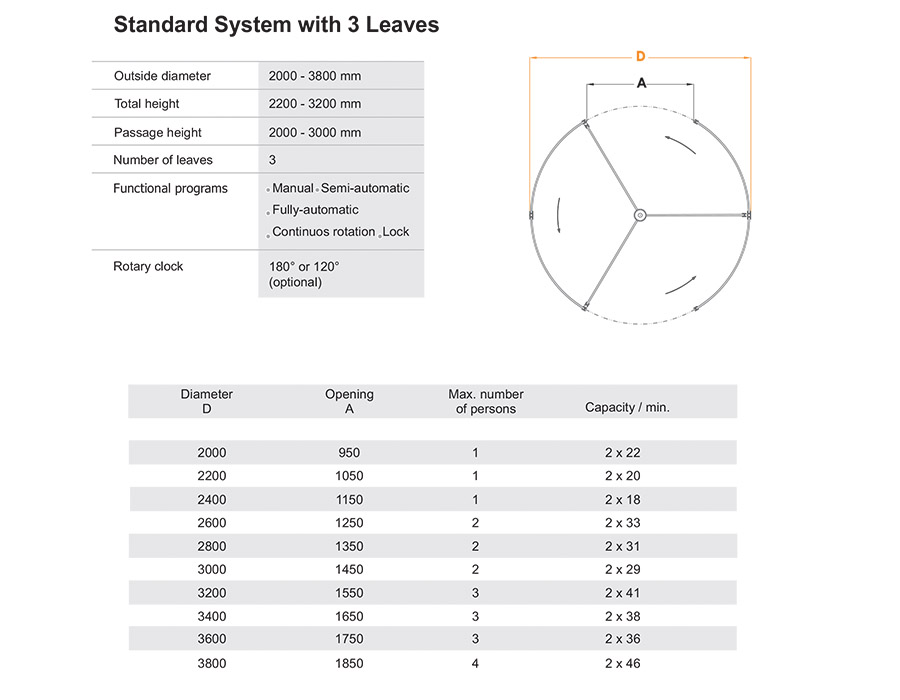

Diameter (mm) – D Opening width -A

RV320 – 3 leaves

Opening width -A

RV420 – 4 leaves

2000 960 1355
2200 1050 1495
2400 1150 1635
2600 1250 1775
2800 1350 1915
3000 1450 2065
3200 1550 2195
3400 1650 2335
3600 1750 2475
3800 1850 2615
