DESCRIPTION

In times when a mechanical system for emergency exit is required or in places where there might be a need for full opening of the door, whether it is fixed or moveable, to allow oversized objects to pass, Deutschtec collapsible SLH series is the impeccable option. In case of emergency, by simply pushing the door forward, individuals are able to open both fixed and moveable doors as and moveable doors as swing ones.

View in larger size
Standards BO240
DIN18650
EN16005
EN60335
EN ISO 13849
EU low voltage directves
EU EMC directives
ISO 9001
TÜV approved
CE conformity
1.000.000 cycles durability test
Technical Data
Opening width – single panel 800 – 1200mm
Opening width – double panel 1000 – 2200mm
Max leaf weight, single 1 x 200kg
Max leaf weight, double 2 x 150kg

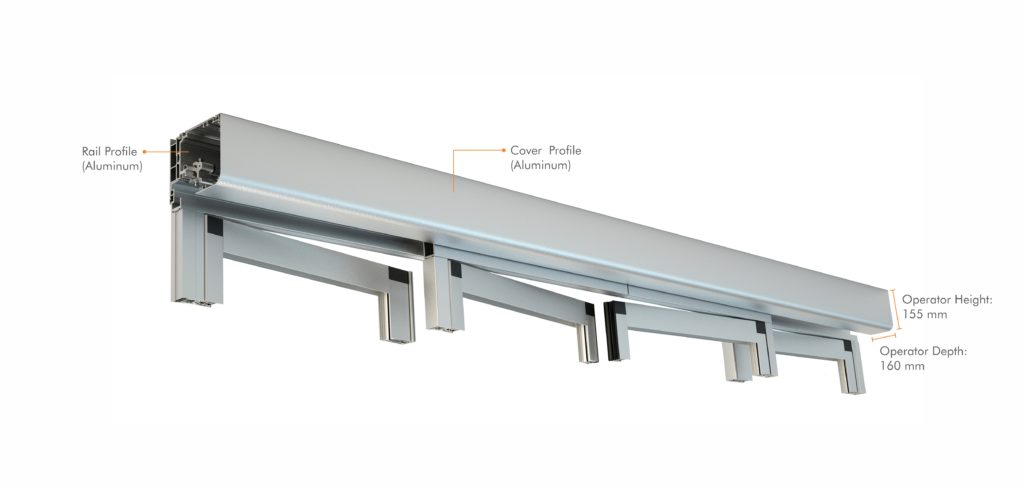

Operator height 155mm
Operator depth 160mm
Opening speed Variable up to 1.1 mm/s

(Double leaves)

Variable up to 1.1 mm/s

(Double leaves)

Hold-open time 0 – 30s
Ambient temperature -15 to +50°C
Protection class IP20

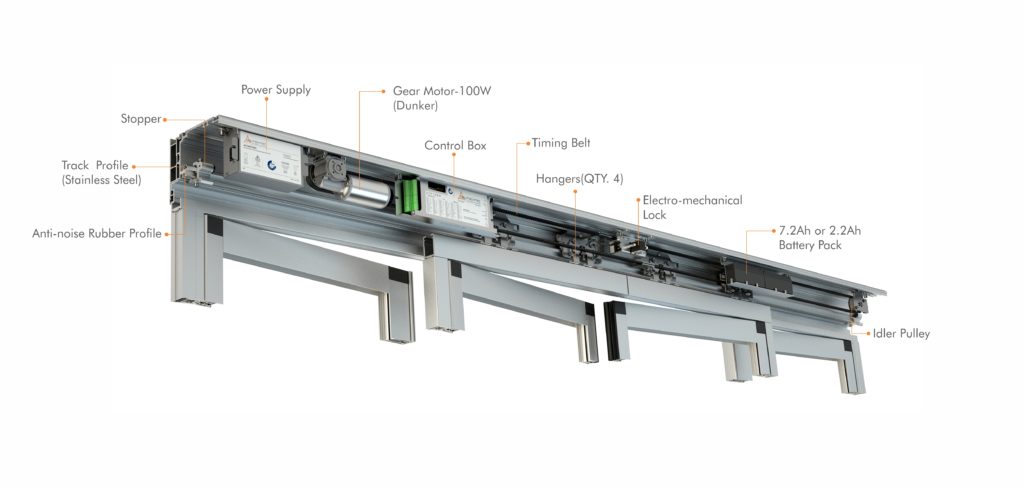

100% German-made operator kit
Control unit origin Leesys GmbH, a part of Siemens Enterprise Communication
Gear motor origin German by Dunkermotoren
Track profile Stainless Steel
Anti-noise rubber profile
Gear motor power 100W
Second motor for emergency opening
Using dual motor gear and control unit set for safe emergency opening and double life time operation
No. of hanger per leaf 2
External protected power supply
Power supply power 230V/28V,120VA
Back-up battery for emergency opening
Possibility to use safety sensors with testing signal
24V DC output for external accessories
Power lock
Lock monitoring
Possibility of using more software and hardware options by using DEAP device (optional)
Read-out error memory with error codes (with digital programme switch)
Programmable output (optional)
Programmable input (optional)
Possibility of using mechanical key switch (optional)
Possibility of using Digital programme switch (optional)
Possibility of using electro-mechanical lock (optional)
Maximum operation cycles with 2.2 Ah backup battery (optional) 400
Maximum operation cycles with 7.2 Ah backup battery (optional) 1000
Frames
Special break-out frame
Thermal break THB
Thermal break TBS
UTS
Saturn
Frameless
